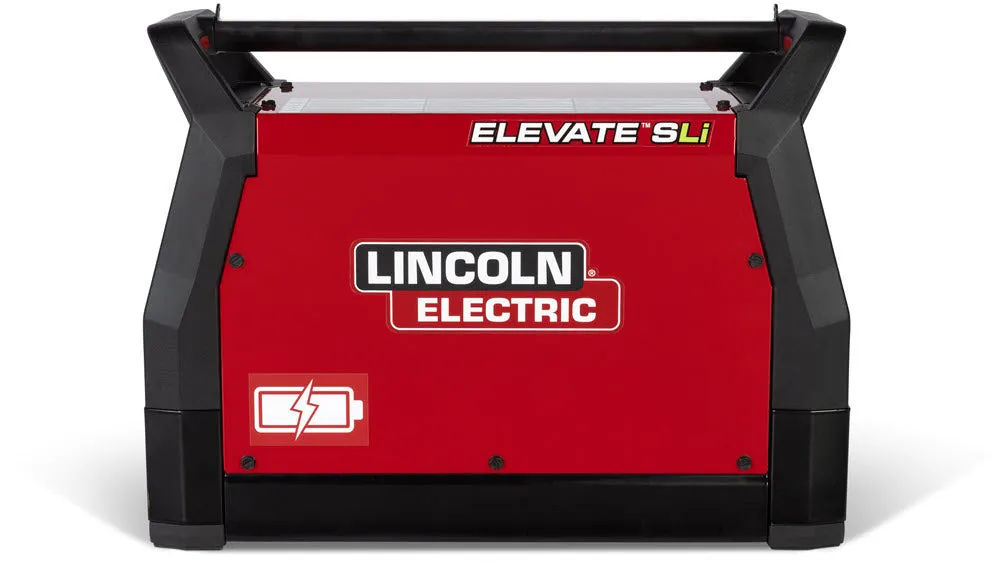

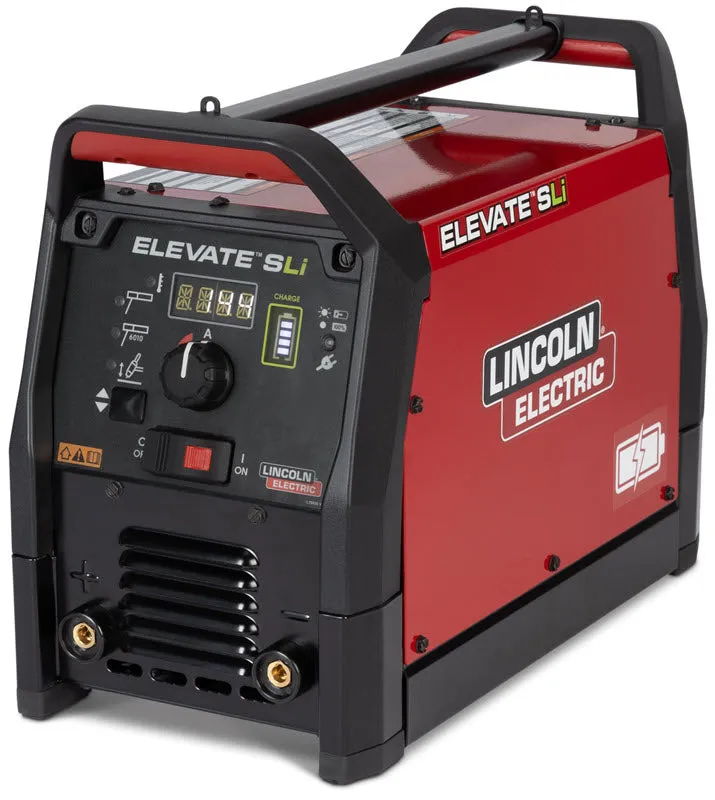

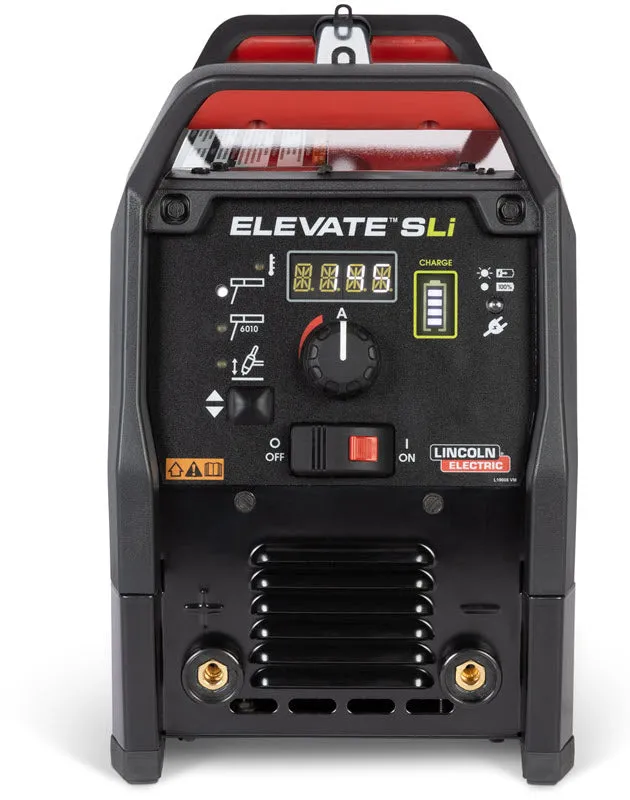

Lincoln® Elevate™ SLi Battery Powered Welder with TIG and Rolling Case Package K5624-1
The Lincoln® Elevate™ SLi, with TIG and Rolling Case Package, is a 145 amp battery powered DC Stick/TIG welder that operates on a fully integrated lithium iron phosphate battery. Weighing in at just 33 pounds, the Elevate SLi is up to 39% lighter than competitve battery welders. It burns up to twenty-one 3/32" diameter stick electrodes, nine 1/8" diameter or six 5/32" diameter welding electrodes. The built-in battery reaches full charge in just one hour.
The Elevate SLi has an output range of 20 to 145 amps in stick welding mode, and 4 to 145 amps while TIG welding. Stick welding features include a dedicated E6010 mode, Arc Force and Hot Start control, and superior arc performance on both E7018 and E6010 electrodes. It features lift-arc TIG starts with INCLUDED TIG torch. It is ideal for maintenance and repair jobs where electrical power is not readily available.

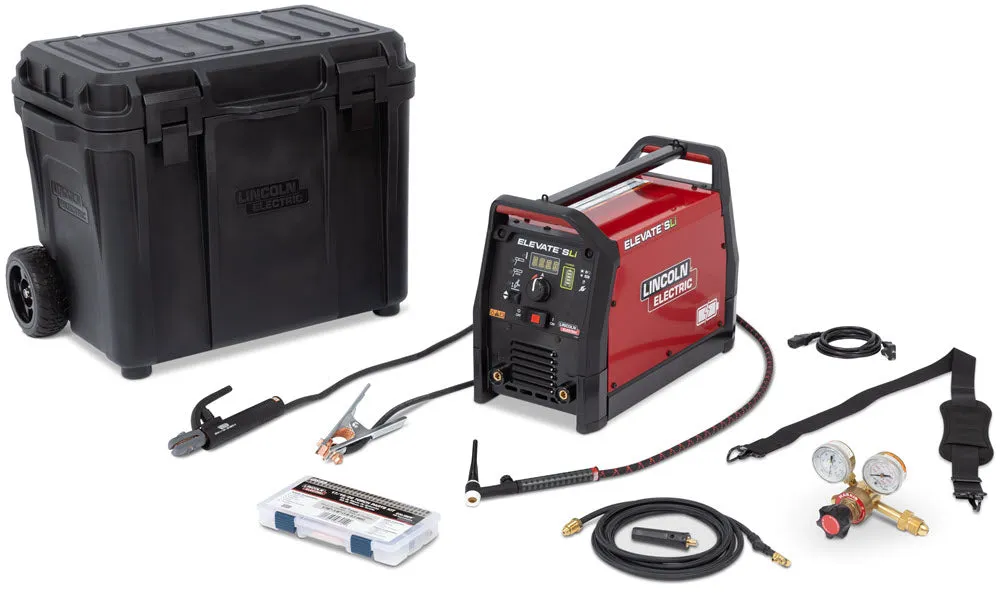

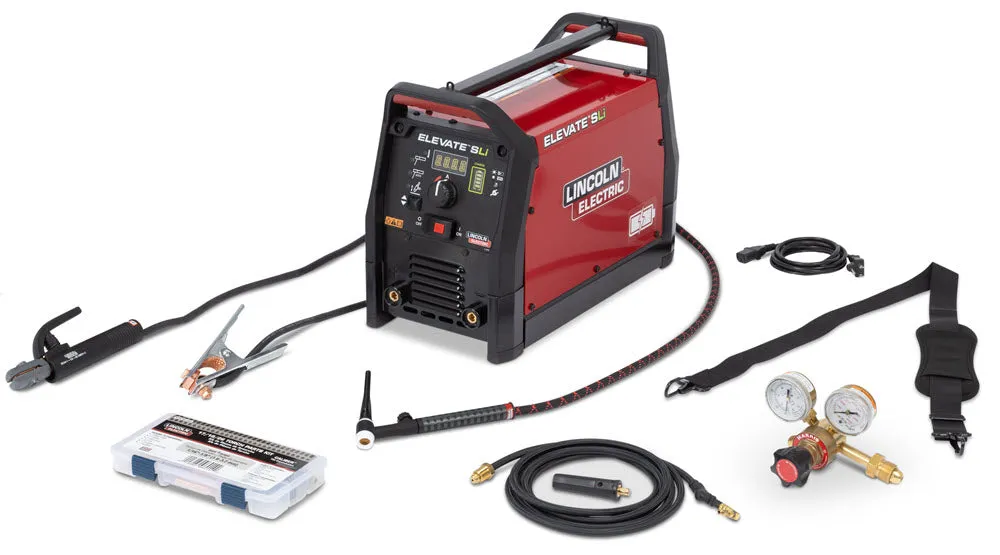

The Lincoln Elevate SLi battery welder comes complete with stick electrode holder with cable, work cable with ground clamp, 120 volt adapter cord, Caliber® 17 Flex/Valve TIG torch, TIG consumables kit, flow guage regulator with hose, and shoulder strap. The included heavy-duty rolling carry case fits your ELEVATE SLi battery-powered welder and most of its accessories. The case is both water resistant and lockable. With a telescoping handle and six inch all-terrain wheels, you can easily transport your equipment from onelocation to another without worrying about carrying it around.
Processes
Applications
Construction
Fabrication
Maintenance
Repair
Features
Welcome to the world of convenience with ELEVATE™ SLi. This cordless design with internal rechargeable battery technology is designed to be lightweight and portable, allowing you to take it on a construction site or repair equipment in the field. The ELEVATE™ SLi is always there to help you get the job done.

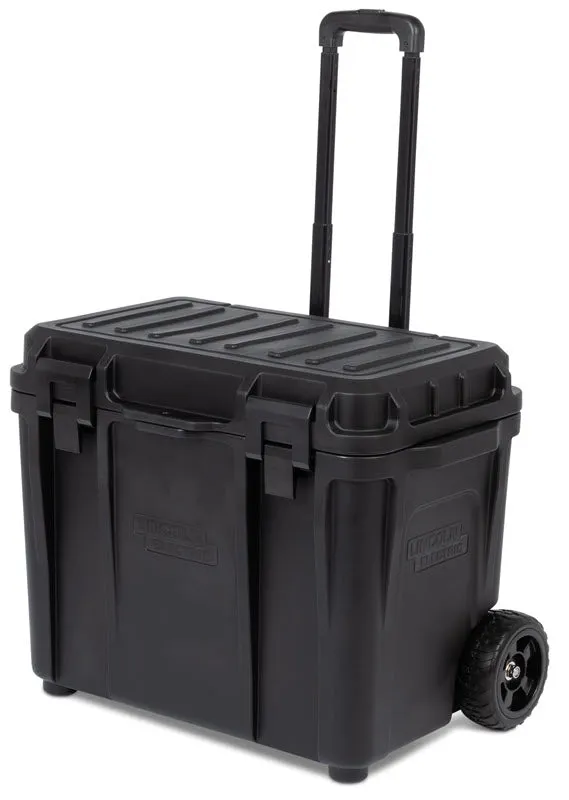

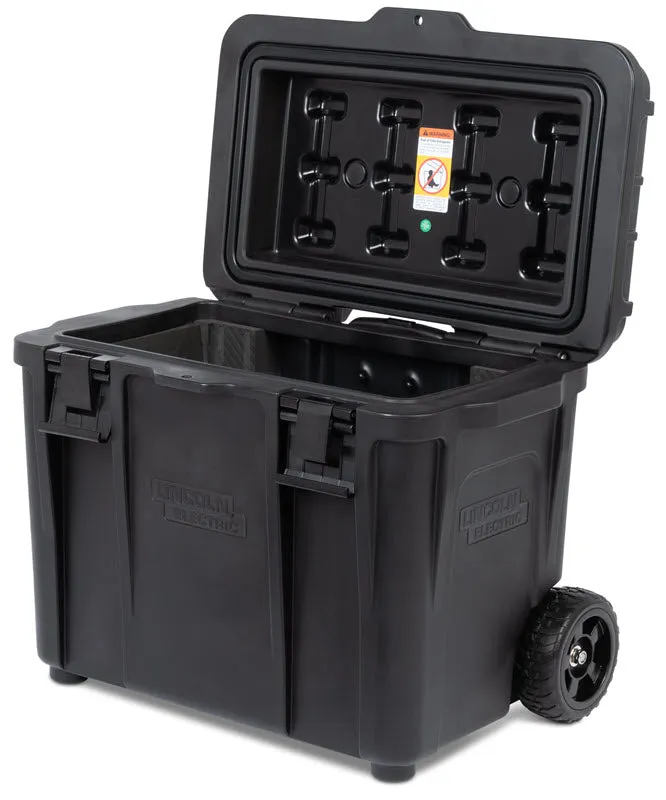

The heavy-duty rolling carry case is designed for the ELEVATE™ SLi battery-powered welder and most of its accessories. It provides the ultimate protection for your welding equipment, ensuring that it always stays safe and secure. With a telescoping handle, you can easily transport your equipment from onelocation to another without worrying about carrying it around.
Premium Caliber® TIG Torch with a Flexible/Valve Torch Head and a 150A 60% Duty Cycle. The TIG torch package includes consumables kit and gas regulator with hose.
Thanks to its premium performance utilizing Lincoln Electrics’ proven Chopper Technology®, ELEVATE™ SLi delivers superior DC arc welding performance for both Stick and Touch Start TIG® welding. Featuring cellulosic capability with the ability to handle up to a 5/32 in. (4.0 mm) diameter electrodes, this welding machine allows both whip and drag techniques for a wider range of construction and fabrication applications

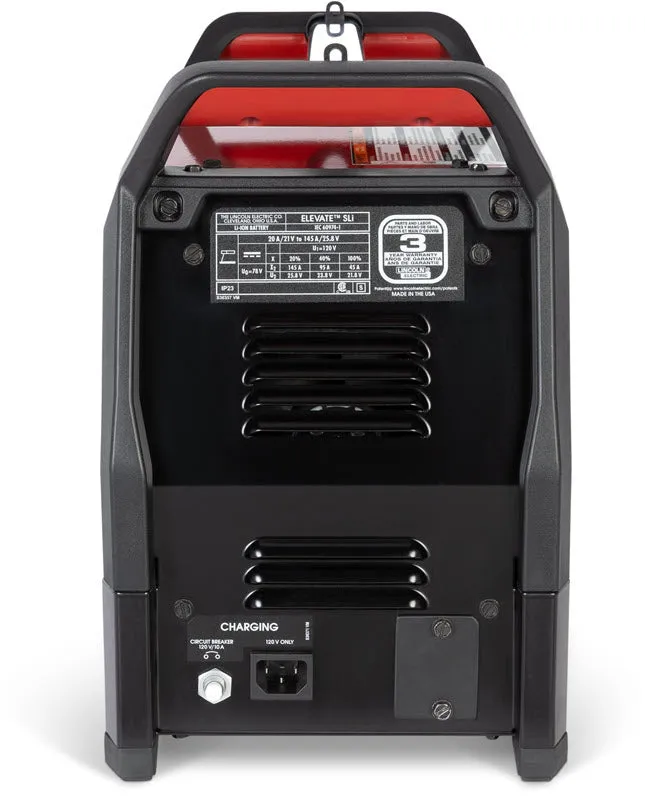

ELEVATE™ SLi has an impressive all-in-one internal charging system that eliminates the need for an external charger, multiple battery packs, or custom power cords. This charging system is designed to regulate the charging process and prevent the battery from being overcharged while continuously monitoring its status.
Not all lithium-ion battery technologies are the same. ELEVATE™ SLi uses lithium iron phosphate battery technology, which offers a longer lifespan, improved discharge and charge efficiency, and increased safety. Built to withstand challenging welding environments with an IP23S rating and fan-as-needed circuitry, ensuring long-lasting performance
Adjust the amperage during arc initialization to improve electrode starting. After the arc is established, the welding current will decrease to the output current set. Increasing from 0 to 10 will increase the additional current (relative to the preset current) added at arc initiation.
Controls penetration profile from soft arc to crisp arc. A high arc force value creates a crisp arc, while a low arc force value creates a soft arc. Full range is from -10 (Soft) to 10 (Crisp)
PLEASE NOTE: This is a DC welder ONLY. It CANNOT TIG weld aluminum.
Comes complete with
